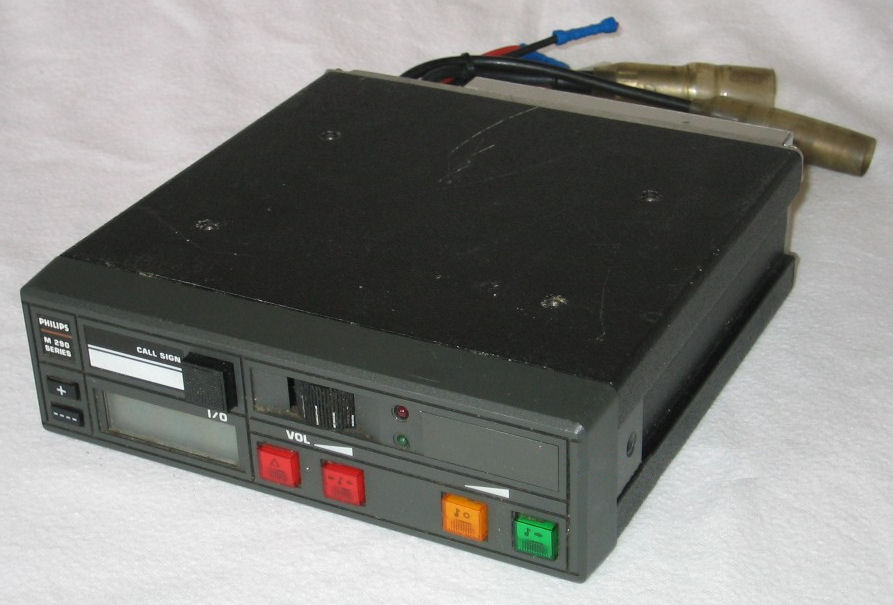

Philips M-294 (CTCSS)
Type:
Private Mobile Radio
Frequency range
depending on version:
Band AO: 148-174 MHz
Band AG: 146-172 MHz
Band BO: 132-156 MHz
Band EO: 68-88 MHz
Band M1: 105-108 MHz
Band M2: 138-141 MHz (RX Only)
Band P5: 79-88 MHz (TX Only)
Band P8: 96-106 MHz
Mode:
FM
RF Power output:
1W/6W/6-25 W
Sensitivity:
N/A
Selectivity:
N/A
Channel Spacing:
Type S: 12.5 khz
Type R: 20 khz
Type V: 25 khz
Voltage:
12 VDC
Current Drain:
RX: ?? mA
TX: ?? W)
Aerial Input:
50 ohms
Dimensions (W*H*D):
175 x 52 x 190 mm
Weight:
1.8 Kg
Manufactured:
198x-19xx
Other:
1-6 channels (depending on version). XTAL
Related Documents:
